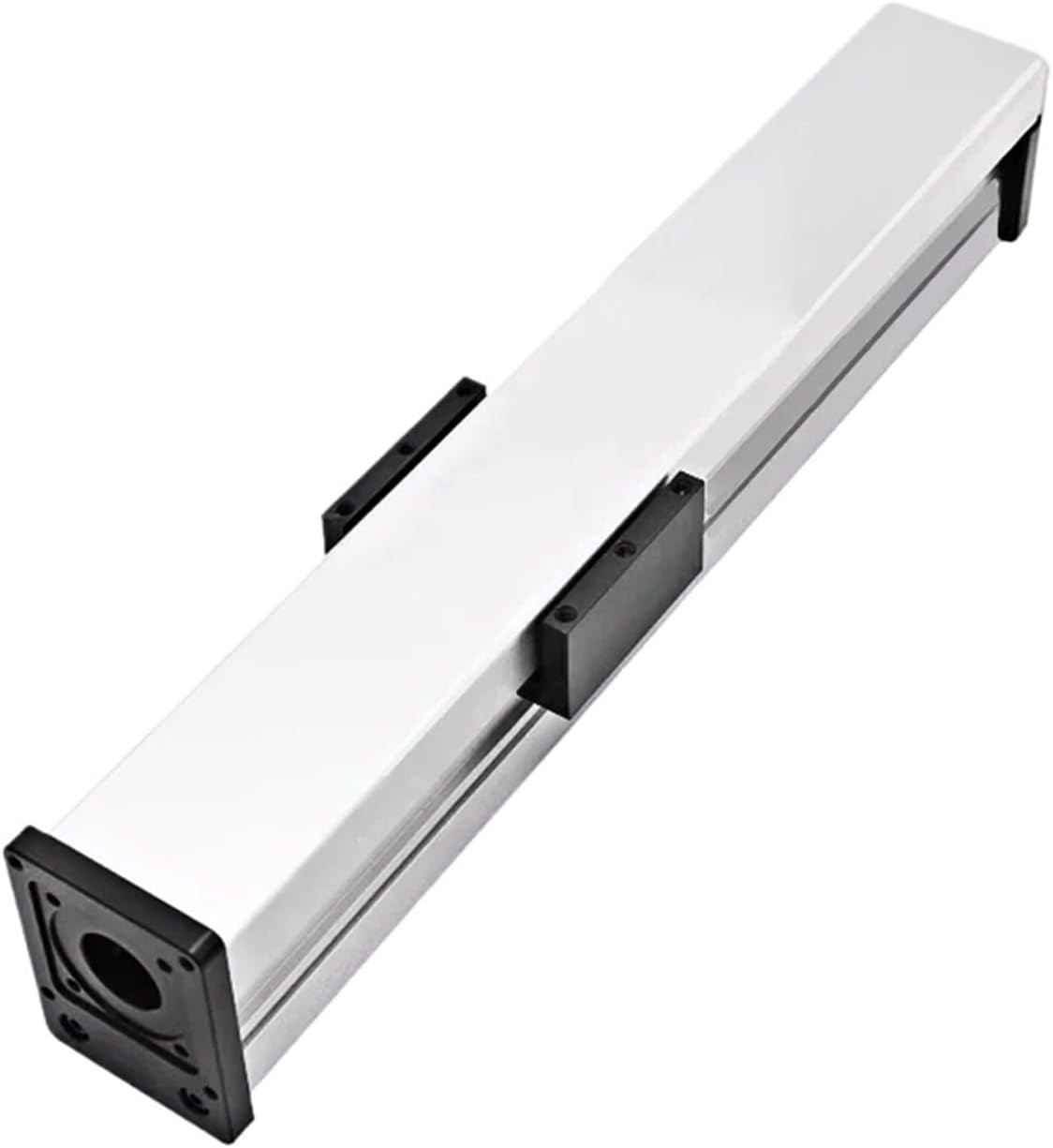

Fully Enclosed Slide Stage Linear Guide Rail Ballscrew SFU1605 1610 Dust Cover for 23 Stepper Motor 60 Servo Max Load 40KG
Product details
| Management number | 210321864 | Release Date | 2026/04/02 | List Price | $445.20 | Model Number | 210321864 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
RailsOption1:1Pcs*Slide Stage Option2:1Pcs*Slide Stage1Pcs* Stepper Motor 1Pcs* Stepper Motor DriveModel: QMF40EffectiveStroke:100mm-1000mm OptionalElectric sliding table total length:Effective Stroke+127mmBallscrew type:SFU1204 ( Screw Diameter 12mm, Pitch 4mm,the screw rod rotates once and the panel moves 4mm ) / SFU1605 / SFU1610Guide Rail Type: 1Pcs*MGN12RSliders type: 1pcs*MGN12CHorizontal load: 40KG (Max)Vertical load: 20KG (Max) Motor bracket:Nema17 42mm/Nema23 57mm stepper motor /60mm servo motorModule material:Industrial Aluminum ProfileModule width:42mmRepeat positioning accuracy: 0.03mm-0.05mmBallscrew material: Bearing SteelBallscrew accuracy: C7Max.moving speed: SFU1204: 200mm/sSFU1605: 250mm/sSFU1610: 500mm/s==========Guide Width or Diameter : 12mmOrigin : Mainland Certification : Effective Stroke : 100mm-600mm OptionalTotal length : Effective Stroke+127mmBallscrew type : SFU1204 1605 1610Guide Rail Type : 1PC MGN12RSliders type : 1PC MGN12CHorizontal load : 40KG (Max)Vertical load : 20KG (Max)Module material : Industrial Aluminum ProfileModule width : 42mmRepeat positioning accuracy : 0.03mm-0.05mmBallscrew material : Bearing SteelBallscrew accuracy : C7SFU1605 Max.moving speed : 250mm/sSFU1610 Max.moving speed : 500mm/sSFU1204 Max.moving speed : 200mm/sProduct type 1 : cnc tableProduct type 2 : xyz stageProduct type 3 : linear guideProduct type 4 : linear stageProduct type 5 : SFU1204 SFU1605 SFU1610Product type 6 : Mobile moduleProduct type 7 : enclosed linear slide Stage
- Rails
- Fully Enclosed Slide Stage Linear Guide Rail Ballscrew SFU1605 1610 Dust Cover For 23 Stepper Motor 60 Servo Max load 40KG
| Size | 500mm Stroke SFU1610 |
|---|---|
| Color | 57mm Closed 2.2Nm |
| Brand Name | LZRAWKGTE |
| Model Name | LZRAWKGTE |
| Part Number | LZRAWKGTE |
| Manufacturer | LZRAWKGTE |
| Package Weight | 50 Grams |
| Number of Items | 1 |
| Suggested Users | unisex-adult |
| Item Package Dimensions L x W x H | 0.39 x 0.39 x 0.39 inches |
